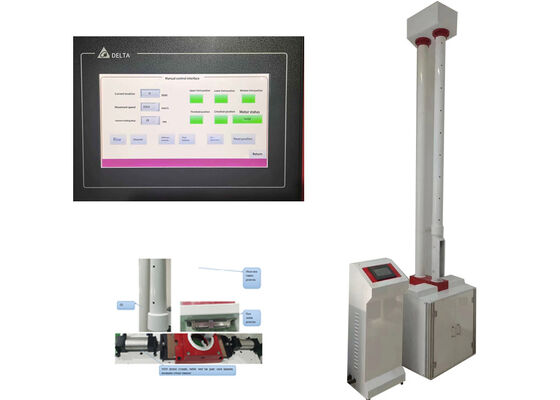

Drop Hammer Test Equipment for Material Compliance Testing

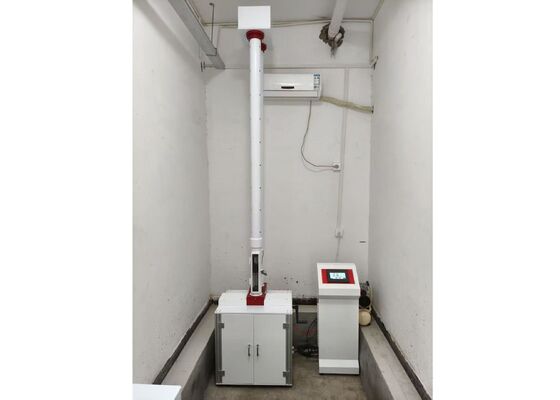

The Falling Weight Deflectometer Impact Tester for Plastic Pipes is a specialized inspection instrument certified in full accordance with ISO 4422, ISO 3127 and ASTM D2444 testing specifications. This precision equipment is designed for quantifying the external impact resistance of circular cross-section thermoplastic pipes in both laboratory and production line environments.
Testing Methodology
During testing, prepared pipe specimens are subjected to impact loads delivered by a falling striker with pre-defined mass and geometric profile. The striker free-falls from a calibrated height to strike designated positions along the circumference of the test piece, enabling accurate estimation of the authentic impact pass rate for entire production batches or continuous manufacturing runs.
Advanced Product Features
- Anti-rebound mechanism achieving 100% striker capture success rate
- Imported AC servo drive delivering ultra-high positioning precision and rapid crosshead lifting speed
- Flexible impact height operation modes: manual custom setting or fully automatic system calibration
- Comprehensive automatic operator safety protection system with safety-interlocked sample loading door
- Multi-layer shock absorption structure and impact-resistant observation window
- Fully automatic lifting height calibration with deviation strictly controlled within ±2mm
- Modular combined impact hammer structure for flexible weight adjustment
- Pneumatic anti-secondary impact capture mechanism with adjustable working air pressure
- Twin-screw support structure for outstanding operation stability and high structural rigidity
Compliance Standards
ISO3127, ISO4422, BS EN744, BS EN1411, ASTM D2444, and related industry standards
Technical Specifications - Model XJL-300D
| Ambient Temperature |
10℃-35℃ |
| Drop Hammer Quality |
0.5kg-16kg |
| Hammer Diameter |
D25mm, D90mm, etc |
| Height of the Fall |
10mm-2000mm, error≤±2mm |
| Diameter of the Sample |
Φ16mm-Φ630mm |
| Deviation of Impact Center |
≤2mm |
| V-type Supporting |
120° |
| Power Source |
220VAC±10% |
| Outline Dimension |
715mm×700mm×3900mm |
| Net Weight |
380kg |
Comprehensive Support and Services
All Drop Hammer Test Equipment units are backed by an all-inclusive technical support and after-sales service system. Our team of certified engineers and skilled technicians delivers professional on-site and remote guidance covering equipment installation, routine maintenance, fault diagnosis, instrument calibration, and supplementary technical services. We also develop tailored non-standard testing solutions to match your unique application requirements.
Our specialized after-sales response team remains available 24/7 to resolve technical inquiries and operational concerns without delay. We are committed to delivering industry-leading customer service and persistent technical support as our core operational principle.
Frequently Asked Questions
What is Drop Hammer Test Equipment?
Drop Hammer Test Equipment is a specialized material testing apparatus manufactured by JHH in Beijing, China, designed specifically to quantify the impact resistance performance of various test specimens.
What is the core application value of this equipment?
This equipment accurately measures the impact resistance of target products, serving as a critical quality inspection procedure to verify and uphold finished product quality standards.
What categories of test specimens are compatible?
The equipment supports impact performance testing for tubular products including PVC-U water supply pipes, sewage pipes, low-pressure water delivery pipes, transmission pipes, core layer foam pipes, double-wall corrugated pipes, PE water supply pipes, and rigid plastic sheets.
What measurement precision can be achieved?
Drop Hammer Test Equipment boasts a premium measurement accuracy rating reaching up to 0.5%.
What is the maximum testing capacity?
The peak impact testing energy supported by this equipment reaches 300 Joules.
