Drop Hammer Test Equipment Suitable for Testing Impact Absorption and Resistance Characteristics of Industrial Products
Product Description:

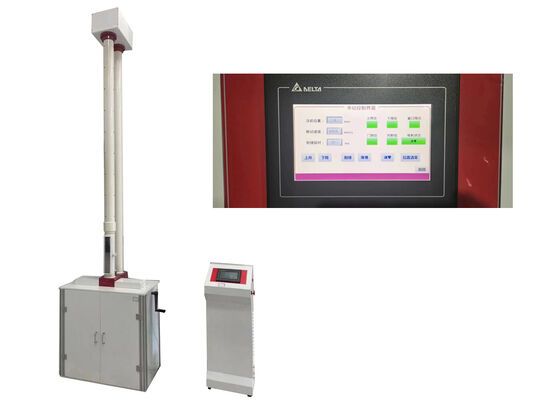

The Falling Weight Deflectometer Impact Tester for Plastic Pipes—designed in full compliance with ISO 4422, ISO 3127, and ASTM D2444 standards—is specifically engineered to assess the external impact resistance of thermoplastic pipes with circular cross-sections. In accordance with standardized test protocols, test specimens are subjected to impact from a falling striker (of predefined mass and geometric configuration) that is dropped from a known height onto designated positions along the specimen’s circumference.
Beyond individual specimen testing, the apparatus enables the statistical estimation of the true impact failure rate for an entire production batch or extruder production run, providing critical data for quality control, batch acceptance, and process optimization in plastic pipe manufacturing.
Product Structure:

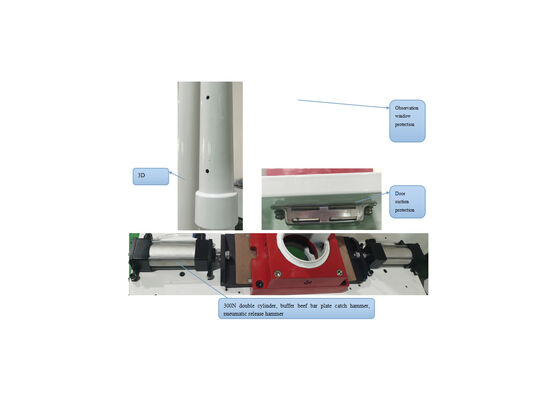

Anti-Rebound Capture Mechanism
The tester is equipped with a dedicated anti-rebound device that achieves a 100% capture success rate, eliminating invalid secondary impacts for accurate test data. It integrates a premium-grade imported AC servo system, which delivers high-precision positioning and rapid lifting velocity to ensure efficient and repeatable test operations.
Flexible Impact Height Configuration
The impact height supports dual operational modes: user-defined manual setting (for customized test requirements) and automated precision calibration (for compliance with standardized testing protocols), catering to both routine and specialized impact testing needs.
Integrated Personnel Safety Protection System
The instrument is outfitted with a full set of automatic safety protection components, including a lockable specimen access door, shock-absorbing buffers, and impact-resistant safety windows. This system creates a secure testing environment and prevents operator exposure to potential hazards during impact procedures.
High-Precision Lifting Height Calibration
It features built-in automatic lifting height calibration with a calibration accuracy of ±2mm, ensuring consistent impact energy delivery and eliminating height deviation-induced test result errors.
Modular Impact Hammer Assembly
Adopting a combination-type impact hammer structure, the device enables flexible weight configuration by adding or removing hammer weights. This adaptability allows it to meet diverse impact energy requirements across different plastic pipe testing standards.
Adjustable Pneumatic Anti-Secondary Impact Mechanism
The pneumatic anti-secondary impact capture device supports on-demand adjustment of operating air pressure, which enhances the mechanism’s capture reliability and adaptability to varying test conditions and specimen types.
Dual-Screw Specimen Support Structure
Specimen positioning relies on a twin-screw support system, which delivers exceptional structural stability and high rigidity. This design ensures precise and fixed specimen placement throughout the impact process, avoiding positional shifts that could compromise test validity.
Meeting standards:
ISO3127, ISO4422, BS EN744, BS EN1411, ASTM D2444, etc.
Technical parameter:
| Model |
XJL-300D |
| Ambient temperature |
10℃-35℃ |
| Drop hammer quality |
0.5kg-16kg |
| Hammer diameter |
D25mm,D90mm, etc |
| Height of the fall |
10mm-2000mm,error≤±2mm |
| Diameter of the sample |
Φ16mm-Φ630mm |
| Deviation of impact center from fixture center |
≤2mm |
| V-type supporting |
120° |
| source |
220VAC±10% |
| Outline dimension |
715mm×700mm×3900mm |
| Net weight |
380kg |
Support and Services:
We provide end-to-end technical support and full-scope after-sales services for our Drop Hammer Test Equipment, designed to ensure sustained operational reliability and optimal performance of your testing systems throughout their lifecycle. Our team of certified in-house engineers and seasoned technical specialists delivers professional guidance and hands-on support covering on-site installation, routine preventive maintenance, advanced technical troubleshooting, precision calibration, and other critical operational needs. Additionally, we specialize in developing tailored technical solutions to address your unique testing scenarios, compliance requirements, or project-specific demands.
We are dedicated to upholding industry-leading customer service and support standards. Our technical support team is available 24/7 via multiple communication channels (including dedicated hotline, email, and remote diagnostic portal) to promptly address any inquiries, technical issues, or service concerns you may encounter, minimizing testing downtime and maximizing equipment utilization.
To learn more about our service packages or to schedule a personalized consultation with our technical team, feel free to reach out to us at your earliest convenience.
Packing and Shipping:
The Drop Hammer Test Equipment will be packaged in export-grade reinforced wooden crates for transit, engineered to provide maximum protection against shock, vibration, and external damage during domestic and international shipping. Each crate is configured with the core testing unit, comprehensive operation and maintenance manuals, dedicated auxiliary components, and essential spare parts—all secured with shock-absorbent cushioning materials to ensure the integrity of precision components. Additionally, every crate is clearly labeled with the equipment name, model number, serial number, and standardized handling markings (e.g., “Fragile,” “Keep Upright”) in compliance with international logistics regulations for streamlined cargo identification.
For seamless cross-border delivery, we provide a full suite of customs-compliant documentation, including a commercial invoice, detailed packing list, certificate of conformity (where applicable), and all other mandatory paperwork required for international shipping. Shipping costs are calculated based on multiple key factors, including the destination region, shipment mode (sea freight/air freight), and the overall volume/weight of the consignment, with transparent quotation available upon request.
FAQ:
-
Q1: What is the Drop Hammer Test Equipment, and who manufactures it?
A1: The Drop Hammer Test Equipment is a specialized impact performance testing apparatus designed and manufactured by JHH in Beijing, China. Its core function is to quantitatively assess the impact resistance of various materials and components under controlled dynamic impact loads.
Q2: What is the primary purpose of the Drop Hammer Test Equipment in industrial quality control?
A2: The core objective of this equipment is to accurately measure the impact resistance of target specimens, enabling manufacturers to conduct rigorous quality validation and performance verification of products, thereby ensuring compliance with industry quality standards and application safety requirements.
Q3: Which products and materials are applicable for testing with the Drop Hammer Test Equipment?
A3: It is widely suited for impact resistance testing of a diverse range of pipes, including PVC-U water supply pipes, sewage pipes, low-pressure water supply pipes, low-pressure transmission pipes, core-layer foamed pipes, double-wall corrugated pipes, and PE water supply pipes. Additionally, it is compatible with rigid hard plastic sheets for material performance evaluation.
Q4: What is the overall test accuracy level of the Drop Hammer Test Equipment?
A4: The apparatus boasts a comprehensive test parameter accuracy of up to 0.5%, ensuring highly reliable and repeatable impact test data for product quality analysis and compliance assessment.
Q5: What is the maximum impact energy capacity of the Drop Hammer Test Equipment?
A5: The equipment features a maximum rated impact testing energy of 300J, which covers the impact resistance testing requirements of most industrial-grade non-metallic pipes and plastic sheets in mainstream application scenarios.
